SA-Surge Anticipating Control Valve
Armaş “SA” model surge anticipating control valve is the safety control valve designed to protect system in relatively longer water supply network elevating line by damping energy waves formed by energy interruptions in pumping systems and by releasing water-hammers which are caused from sudden changes in water flow rate to atmosphere automatically and quickly. Valve is opened quickly by sensing diminished pressure wave previously by means of pressure signal tube it owned. When line pressure reached normal level, it is closed slowly and automatically as wholly sealed.

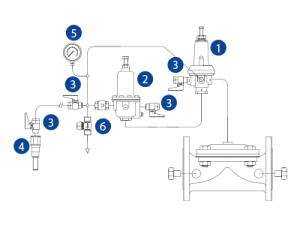

1-Low Pressure Pilot Valve; 2-High Pressure Pilot Valve; 3-Ball Valves; 4-In-line Finger Filter; 5-Pressure Gauge; 6-Needle Valve
The valve will be diaphragm actuated disc closing automatic hydraulic control valve which works with line pressure. Double-chamber diaphragm actuator provides quicker and non-impact opening/ closing thanks to disc-closing valve design and prevents blockage by showing less sensitivity against solid substances within fluid.

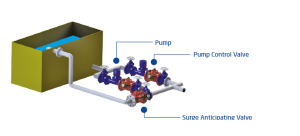

Surge Anticipating valve is mounted on network in TE configuration.
Since valve’s function is to release pressure, valve diameter may be selected as equal to or in closest smaller size than main pipe diameter. Valve diameter should be selected as smaller than main pipe diameter. Following empirical formula may be used in determining diameter of quick pressure relief control valve. Where;
D = Diameter of surge anticipating valve (mm)
Q = System Flow Rate (m3/h)
Hm = System Operating Pressure (meter → 1 bar ≈ 10 meter)
Valve closing time is proportional with pipe length. As system pipe length increases, valve closing time should be increased.
