QR-Quick Pressure Relief Valve

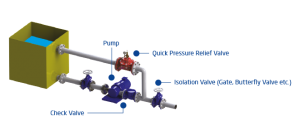

Armaş “QR” model quick relief control valve is the safety control valve designed to protect system by releasing pressure surges to atmosphere quickly caused from sudden changes in water speed because pumps put into/out of service frequently in water network elevation lines. When network pressure goes beyond set point, valve opens by itself quickly and protects system by releasing over pressure. When line pressure decreases to normal level, it is closed slowly and automatically as wholly sealed without causing surge.

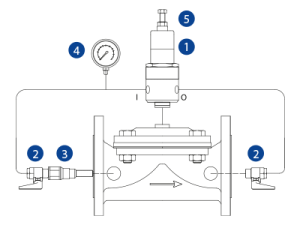

1-Quick Pressure Relief Pilot Valve; 2-Ball Valves; 3-In-line Finger Filter; 4-Pressure Gauge
The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts such as stem, bearing and seat exist in main valve body. The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller. Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec)
