PR-Pressure Reducing Valve

Armaş “PR” model pressure reducer control valve is the hydraulic control valve which reduces high upstream pressure value to desired lower pressure value by means of built-in pressure reducing pilot valves. Pressure reducer control valve controls downstream pressure value continuously and maintains it constant without being affected from flow rate and upstream pressure values. When no flow exists in the system, it closes itself automatically. When valve upstream pressure value, it is opened fully by itself. Valve may be used in vertical or horizontal positions in the system.

Models

Features

5557
Connection   ThreadedFlanged
MaterialGlass Reinforced PolyamideGlass Reinforced Polyamide
Body TypeGlobeGlobe
Max. Working
Pressure

10 bar (145 psi)

10 bar (145 psi)
Available
Sizes
inchmminchmm
1½”Ø404″Ø100
2″Ø50
2½”Ø65
3″Ø80
4″Ø100

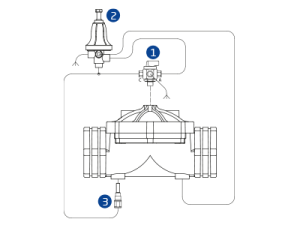

1-3-way selector valve; 2-Plastic Pilot; 3-In-line Finger Filter;
