TSO-Two Stage Opening Valve
Armaş “TSO” model two stage opening valve is used all lines will be fast filled, it can be used to prevent damage caused by fast filling. Until the low pressure port of the pilot is completely filled, flow of valve is restricted and then allowed to fully opening. It can be used with other control valves for filling the system with high water speed.
1-Multifunctional Pilot; 2-Ball Valves; 3-3-way Selector Valve; 4-In-line Finger Filter
The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts such as stem, bearing and seat exist in main valve body. The valve position will be controlled by a hand operated selector valve.

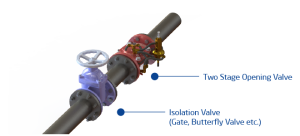

Valve size same as main line or one size smaller. Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec)
