PREL-Solenoid Controlled Pressure Reducing Valve
Armaş “PREL” model pressure reducing valve is the hydraulic control valve which reduces high upstream pressure value into desired lower pressure value. Control of main valve is achieved by means of built-in solenoid pilot valves. Electric signal for solenoid pilot valves is ensured by means of a control device, time relay, main switch and PLC control units etc. Automated control may be easily ensured by this way in application systems.
AVAILABLE MODELS
Models | Features | 55 | 57 | ||
 |  |  | |||
| Connection | Threaded | Flanged | |||
| Material | Glass Reinforced Polyamide | Glass Reinforced Polyamide | |||
| Body Type | Globe | Globe | |||
| Max. Working Pressure | 10 bar (145 psi) | 10 bar (145 psi) | |||
| Available Sizes | inch | mm | inch | mm | |
| 1½” | Ø40 | 4″ | Ø100 | ||
| 2″ | Ø50 | ||||
| 2½” | Ø65 | ||||
| 3″ | Ø80 | ||||
| 4″ | Ø100 | ||||

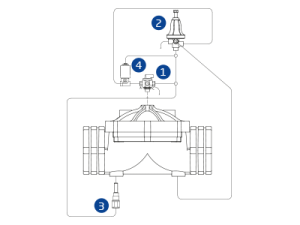

CONTROL SYSTEM COMPONENTS
1-3-way selector valve; 2-Plastic Pilot; 3-In-line Finger Filter; 4-Solenoid Pilot Valve
