M-Manual Control Valve

Armaş “M” model valve is the hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of a 3-way selector valve. Minimum opening pressure of valve is 0.7 bar. Thanks to its flexible diaphragm, it makes easy and fast control process in high pressure applications and is closed as fully tight without causing surge. It may be used in different applications by adding different pilot valves on its main body.

Models

Features

5557
Connection   ThreadedFlanged
MaterialGlass Reinforced PolyamideGlass Reinforced Polyamide
Body TypeGlobeGlobe
Max. Working
Pressure

10 bar (145 psi)

10 bar (145 psi)
Available
Sizes
inchmminchmm
1½”Ø404″Ø100
2″Ø50
2½”Ø65
3″Ø80
4″Ø100

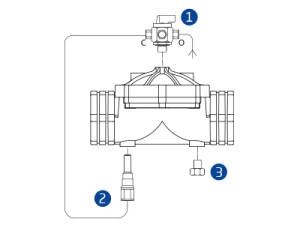

1-3-way selector valve; 2-In-line Finger Filter; 3-Plug
