FL-Float Level Control Valve
Armaş “FL” model float level control valve is the hydraulic control valve designed to control water level in reservoirs and tanks continuously. Main valve is controlled by 2-way modulating type float pilot valve or manually. Main valve mounted on upstream of a reservoir or tank is closed as fully sealed without causing surge when water level reaches to maximum level. Valve opening/closing speed may be adjusted. It may be used in the system by mounting in horizontal or vertical orientations.
AVAILABLE MODELS
Models | Features | 55 | 57 | ||
 |  |  | |||
| Connection | Threaded | Flanged | |||
| Material | Glass Reinforced Polyamide | Glass Reinforced Polyamide | |||
| Body Type | Globe | Globe | |||
| Max. Working Pressure | 10 bar (145 psi) | 10 bar (145 psi) | |||
| Available Sizes | inch | mm | inch | mm | |
| 1½” | Ø40 | 4″ | Ø100 | ||
| 2″ | Ø50 | ||||
| 2½” | Ø65 | ||||
| 3″ | Ø80 | ||||
| 4″ | Ø100 | ||||

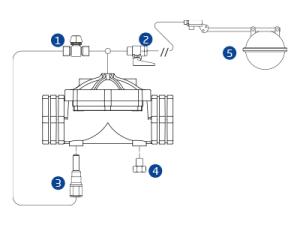

CONTROL SYSTEM COMPONENTS
1-Needle Valve; 2-Ball Valve; 3-In-line Finger Filter; 4-Plug; 5-Float;
