FRPR-Flow Rate Control and Pressure Reducing Valve

Armaş “FRPR” model flow rate control and pressure reducing valves, independently provides two functions. Flow control being provided with 3 way differential pilot valve on the main valve which works line pressure without any energy, pressure reducing pilot valve control the downstream pressure of main valve. Flow rate control and pressure reducing valves decrease the valve number on lines used flow and pressure control to economize.

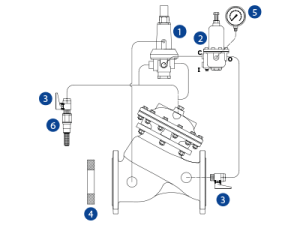

1-3-Flow Rate Control Pilot; 2-Pressure Reducing Pilot; 3-Ball Valves; 4-Orifice Plate; 5-Pressure Gauge; 6-In-line finger filter

The valve will be diaphragm actuated disc closing automatic hydraulic control valve which works with line pressure. Double-chamber diaphragm actuator provides quicker and non-impact opening/ closing thanks to disc-closing valve design and prevents blockage by showing less sensitivity against solid substances within fluid.

Valve size same as main line or one size smaller. Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec)
