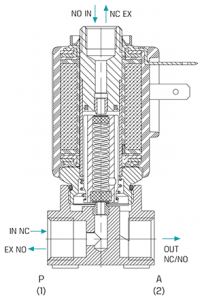

GEM-A-Solenoid-3/2 way

3/2 way Normally Closed, Normally Open Solenoids are available as 24V AC or 9-12V DC Latch with 1/8” NPT&BSPT and ¼” NPT&BSPT connections sizes. Maximum working pressure are PN16&PN25. It is suitable to use at potable water apps, irrigation projects and fire fighting.

Function3/2 way NC, NO
Ports Size⅛” and ¼” BSP &NPT
Orifice Size1.6 mm
Pressure Range16 bar – 25 bar

Temperature Range

5℃ to 50℃



Materials in contact
with Media

Manual Override:
Plastic, Brass screw or Brass finger knob, SST for SST valves

Main Valve:
Brass or SST AISI 316

Solenoid Operator:
SST AISI 300&400 Series

Seals:
NBR, EPDM
MediaWater
Coil Voltage9-12V DC Latch,
24VAC
Standard Protection Class*Option: IP68
