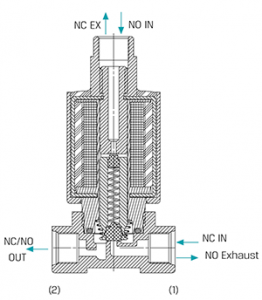

G75-A Solenoid-3/2 way

3/2 way Normally Closed, Normally Open Solenoids are available as 24V AC or 9-12V DC Latch with 1/8” NPT&BSPT and ¼” NPT&BSPT connections sizes. Maximum working pressure are PN16&PN25. It is suitable to use at potable water apps, irrigation projects and fire fighting.

Function3/2 way NC, NO
Ports Size⅛” and ¼” BSP &NPT
Orifice Size1.6 mm
Pressure Range16 bar – 25 bar

Temperature Range

5℃ to 50℃





Materials in contact
with Media

Manual Override:
Reinforced Nylon

Main Valve:
Reinforced Nylon

Solenoid Operator:
SST AISI 300&400 Series

Seals:
EPDM
MediaWater
Coil Voltage9-12V DC Latch,
24VAC
Standard Protection ClassIP66
